360 degree PIR Motion Sensor

From: 5,984.00

The motion detector adopts good sensitivity detector, integrated circuit. It gathers automatism, convenient safe, saving-energy and practical functions.

Clear
SKU: motion-sensor Category: Tag:

Description

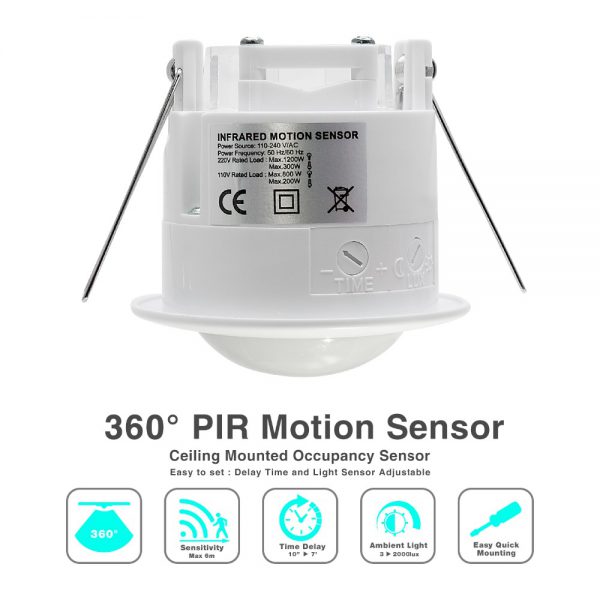

360 degree PIR Motion Sensor

SPECIFICATION:

Power Sourcing:110V/AC-240V/AC

Detection Range: 360°

Power Frequency: 50Hz/60Hz

Working Temperature: -20~+40°C

Ambient Light: 3-2000LUX (Adjustable)

Working Humidity: <93%RH

Time-Delay: min.10sec±3sec

Max: 7min±2min

Power Consumption: 0.45W (work)

0.1W (static)

Rated Load: 1200W (incandescent lamp) 300W (energy-saving lamp)

Detection Motion Speed: 0.6~1.5m/s

Detection Distance: 6m max (<24°C)

Installing Height: 2.2m~4m

Description

The motion detector adopts good sensitivity detector, integrated circuit. It gathers automatism, convenient safe, saving-energy and practical functions. It utilizes the infrared energy from human as control-signal source, it can start the load at once when one enters detection field. It can identify day and night automatically. It is easy to install and used widely.

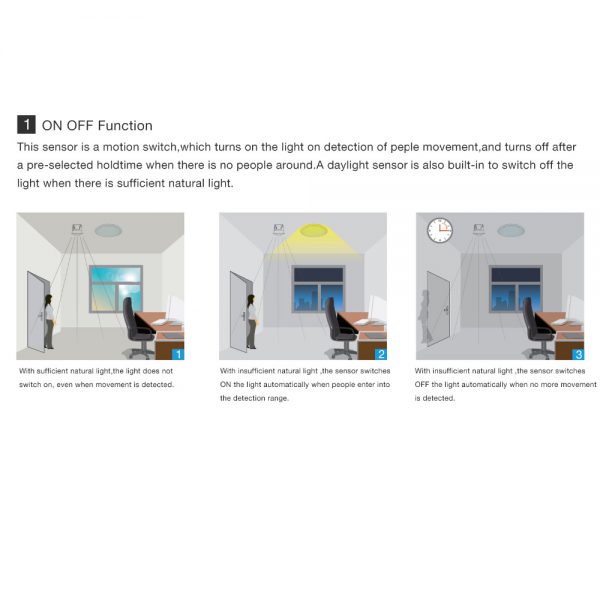

FUNCTION:

1.Identify day and night automatically. Can adjust ambient light according to your desire: when turn to SUN (max), it will work in the daytime and at night. When turn to MOON (min), it will only work under less than 3LUX circumstance. As for Adjustment, please refer to testing way.
2.Time-delay is added continually: when it receives the second induction signal after the first inductor, it will compute time once more on the rest of the first time-delay basic (Set time) .
3.Time-delay adjustment: it can be set according to your desire. The minimum is 10±3 sec; the maximum is 7±2min.

Additional information

Weight 0.15 kg

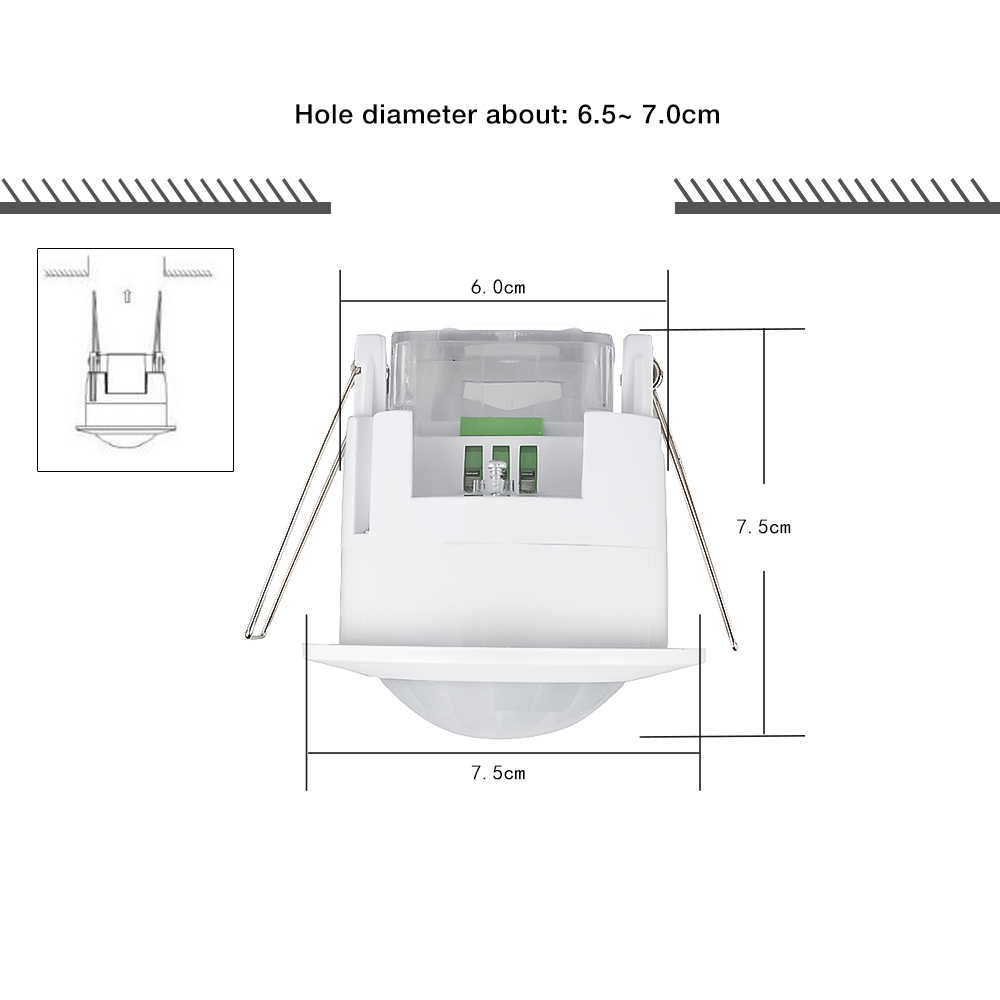

Dimensions 3.15 × 3.94 × 3.94 in
